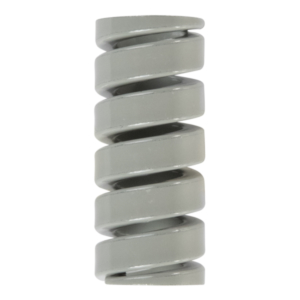

Ultra-spring for 17AD300
Item #: 17AD307=20Nexgear Tango Ultra Spring
Suggested HCPCS Coding: L2999
Learn more about our Reimbursement Services
Overview
The Ultra Module is one of the four function module options for the 17AD300 Nexgear Tango. The removable modules enable a high degree of flexibility in functionality and design, and allow for customization of the joint to a user's individual needs throughout the entire rehabilitation process. This module is available in two sizes. The weight classification allows unilateral use for a user body weight up to 243 lbs and bilateral use for up to 353 lbs.
The Ultra Module features high spring forces, along with dampened and controlled plantar flexion. The module offers dynamic control of the knee in the mid-stance phase, and a high level of energy return at the beginning of the swing phase.
The Ultra Spring for the Ultra Module is available and has ultra spring force about twice as high as spring force of the current yellow spring, allowing for more unilateral fittings.
Specifications
| Item number | Dimensions | Weight | System width | Maximum body weight | Unit |
| 17AD307=20 | 63 x 27 mm | 110 g | 20 mm (0.787 in) | 243 lbs (unilateral) / 353 lbs | Piece |
