Ankle Joint for Children

Item #: 17F34=6
Forged foot stirrup, flat bar profile, fixed joint, upper sections and foot stirrup

Expected Availability 12/31/19
Log in to order
Suggested HCPCS Coding: Initial: Included in Base Code
Replacement: L4210
If Applicable: L2250
Learn more at Reimbursement Services
Product Details

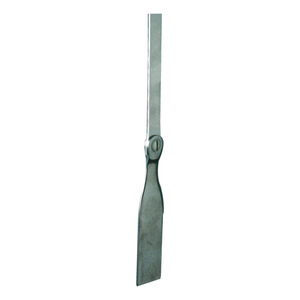

Free motion ankle joint bar with range of motion +/- 30°, to be established by filing the upper foot bar section. Forged foot stirrup, flat bar profile, fixed joint, upper sections and foot stirrup

Technical Specification
Bar Length 180 mm (7.086 in)
Bar Width 12 mm (0.472 in)
Bar Thickness 2 mm (0.0787 in)
Stirrup Length from Joint Center 115 mm (4.527 in)
Stirrup Width 25 mm (0.984 in)
Head Diameter 16 mm (0.629 in)
Material Stainless Steel
Quantity Pair

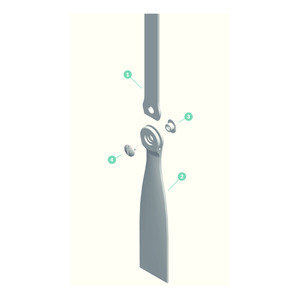

Spare Parts
Foot Stirrup for 17F34=6
17C4=6

Foot Stirrup for 17F34=6

BEARING NUT -HARDENED-
17Y93=7X4.75XM4

BEARING NUT -HARDENED-

Bearing Nut - Hardened
17Y93=6X4.75XM4

Bearing Nut - Hardened

Ankle joint upper bar for 17F34=6
17A4=6

Ankle joint upper bar for 17F34=6

Documents

Processing instructions for Ottobock system bars and leg bars – stainless steel –

Product Information: 647G2 (EN/DE/FR/IT/PT/NL/SV/DA/PL/HU/CS/TR/RU/EL)

Published Date: July 1, 2013

16/17x - Stainless Steel, contains Nickel < 1% Safety Data Sheet

Safety Data Sheet: (EN)

Published Date: March 6, 2015

16/17x - Stainless Steel contains Nickel < 1% Safety Data Sheet

Safety Data Sheet: (FR)

Published Date: March 22, 2018
