Socket Adapter with Adjustment Pyramid

Item #: 4R109=3L

Log in to order

Overview

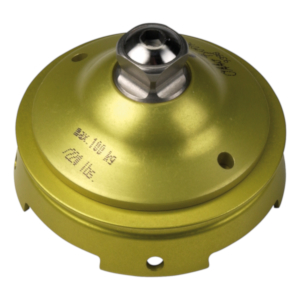

The 4R108/4R109 Socket Attachment Blocks function as the adjustable connection between a transtibial socket and distal component. The adjustment is done during the trial fitting and secured through the anti-rotation lock of the adapter. After loosening the central countersunk screw, the lower part of the adapter can be shifted against the lamination/vacuum forming shell integrated in the socket by 8 mm medically and laterally in the frontal plane and by 6 mm dorsally and ventrally in the sagittal plane.

Documents

Refine results

4R108=3L, 4R109=3L, 4R108=3T, 4R109=3T Socket Adapter - Instructions for Use

Instructions for Use: 647H230 (EN/DE/FR/IT/ES/PT/NL/SV/DA/PL/CS/EL)

Publish date: Mar 21, 2017

PDF Document (647H230-INT-07-1703w.pdf | 1 MB)
