Overview

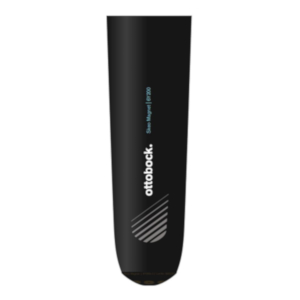

This liner is only for use with the 5A60 Varos Socket with magnetic distal connection.
Benefits at a glance:
- Strong Distal magnetic connection with Varos TF Sockets
- Textile covered for linkage to Varos inner socket rotation control
- No-Stretch Matrix the entire length of liner for reduced elongation and good tissue management
Currently Only size Medium-1 and Medium-2 available for the Size Medium Varos Sockets
Specifications
Article number | 6Y200=M-1 | 6Y200=M-2 |
Size | Medium | Medium |
Length (not shortened, outside dimension) [mm] | 450 | 450 |
Weight [g] | 650 | 680 |
Circumference (inside, at the rim of the liner) [mm] | 440 | 470 |

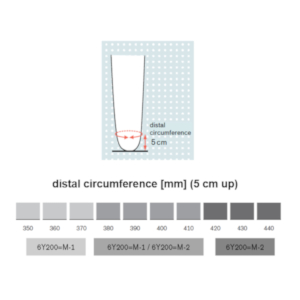

Circumference (inside, 50 mm from the bottom of the liner) [mm] | 330 | 360 |
Coupling force to 5A60=* Varos [N] | 150 (typical) | 150 (typical) |
Documents
6Y200=* Varos Liner Instructions for Use
Instructions for Use: (EN/DE/FR/IT/ES/PT/NL/SV/DA/NO/FI)
Publish date: Jun 26, 2020
PDF Document (647G1239-all_INT_INT-07-2008w(3755045)_en.pdf | 775 KB)
