Nitro Running (short)

Item #: FS9=0_B

184 mm build height

Log in to order
Suggested HCPCS Coding: L5999

Learn more about our Reimbursement Services

Overview

Limited inventory available. Suggested replacements include 1E90 Sprinter and 1E91 Runner.

Comfort that Goes the Distance

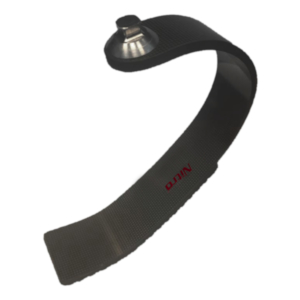

The Nitro Running Foot is a custom foot module engineered specifically for jogging and distance running. Each c-shaped running blade is handcrafted using our proprietary carbon fiber layering technique to provide the ideal amount of spring needed to run comfortably. The Nitro Running Foot is customized to user weight and running experience to provide the appropriate balance between strength and flexibility for high impact activities. The short profile design requires less build height for petite users and children, while a tall profile design is also available for adult users. A male pyramid attachment simplifies the fitting process.

Features

  • Individually handcrafted carbon fiber layering technique ensures optimal vertical displacement and energy return
  • Endoskeletal attachment option facilitates easy adjustments and fabrication
  • Compatibility with exoskeletal design reduces system weight
  • Stiffness tailored to amputee weight and running experience
  • Rated to 365 lbs
  • Water-resistant

Specifications

Activity Level K3, K4
Maximum Body Weight 365 lbs (166 kg)
~ Min. Clearance Height 184 mm (7 1/4")
Stiffness 1, 2, 3, 4, 5, 6, 7, 8, 9
Product Weight 9.70 oz (275 g)
Stiffness by activity (experience) level
Low Activity (New) Moderate Activity (Experienced)
100 - 115 lbs / 44 - 52 kg 01 01
116 - 130 lbs / 53 - 59 kg 01 02
131 - 150 lbs / 60 - 68 kg 02 03
151 - 170 lbs / 69 - 77 kg 03 04
171 - 195 lbs / 78 - 88 kg 04 05
196 - 220 lbs / 89 - 100 kg 05 06
221 - 255 lbs / 101 - 116 kg 06 07
256 - 285 lbs / 117 - 130 kg 07 08
286 - 325 lbs / 131 - 147 kg 08 09
326 - 365 lbs / 148 - 166 kg 09 N/A

Documents

Refine results

FS6 & FS9 Nitro Running - Instructions For Use

Instructions for Use

PDF Document | Published: Dec 16, 2021
