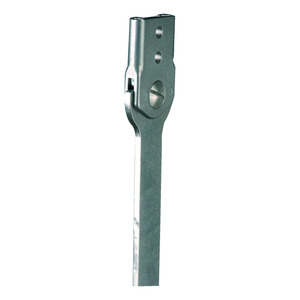

Double Act. Ankle Jt.Child

Item #: 17F53=5
Ankle joints and foot stirrups stainless steel, side bars aluminium

Log in to order
Suggested HCPCS Coding: (Base) + L2220 per joint
Replacement: L2220

Learn more about our Reimbursement Services

Overview

Stainless steel, Double function with stop pins and springs. For limiting or supporting plantar and dorsal flexion. Indications for example: ICP spina bifida limitation of movement peroneal paralysis

Specifications

Bar Height 230 mm
Bar Width 14 mm (0.551 in)
Bar Thickness 3 mm (0.118 in)
Joint Height 38 mm
Joint Depth 6.5 mm
Joint Width 28 mm
Material Stainless Steel
Quantity Pair

Documents

Refine results

16/17x - Stainless Steel, contains Nickel < 1% Safety Data Sheet

Safety Data Sheet: (EN)

Publish date: Mar 6, 2015

PDF Document (016_17x_en-US.pdf | 161 KB)

16/17x - Stainless Steel contains Nickel < 1% Safety Data Sheet

Safety Data Sheet: (FR)

Publish date: Mar 22, 2018

PDF Document (016_17x_fr-CA.pdf | 177 KB)
